Indoor P3.91 Transparent LED Display with High Transparency Effect

Specification:Light ChipTypeSMD2121Chip parametersRed λd:(620-625nm) IV:(800-960mcd)Color1R1G1BChip parametersGreen λd:(520-525nm) IV:(1350-1650mcd)BrandEpisterChip parametersBlue λd:(470-475nm) IV:(330-400mcd) LED ModulePixel Pixel3.91-7.81 mmModule Size500 mmWX250 mmHModule Resolution128×64=8192

Featured Products

Specification:
Light Chip
TypeSMD2121Chip parametersRed λd:(620-625nm) IV:(800-960mcd)
Color1R1G1BChip parametersGreen λd:(520-525nm) IV:(1350-1650mcd)
BrandEpisterChip parametersBlue λd:(470-475nm) IV:(330-400mcd)

LED Module
Pixel Pixel3.91-7.81 mmModule Size500 mmWX250 mmH
Module Resolution128×64=8192(Dots)Module Weight1kg

LED Display Cabinet
Pixel Density65536 Dots/m2Frame Frequencyno less than 60 frame/sec
Cabinet Resolution256×128=32768(Dots) Input VoltageAC110-220V±10%,50/60Hz
abinet Dimension(W*H*D)1000x 500 x 80mmOutput VoltageDC-5V,40A/60A/80A
Module Quanty /Cabinet4 pcs = 2 (w) x 2(h)Grey Scale Levels16bit
Cabinets MaterialDie-casting Alminum CabinetColor ProcessingR(1024)×G(1024)×B(1024)
Cabinet Weight10 kgBrightness Adjustment256 color levels
Brightness≥4000 nitsMTBF( mean time between failures)5000 hours
Viewing AngleHorizontal 140°, Vertical 140°Life-span100,000 hours
Nearest Viewing Distance3 meterProtection Level(front/back)IP45
Power Consumption (Max)900 w/m2Malfunction Dot Rateless than 0.0001
Power Consumption (Average)300 w/m2Working Temperature-30ºC~50ºC
Display FunctionText,Graphics,VideoHumidity15%~85%
Refresh Rate≥2000HzScan Mode1/16

Control System
Control ModeSynchronization/AsynchronizationControl SystemSending Card, Receiving Card,Receiving HUB
PC Operating SystemMicrosoft Windows 7, XP and VistaSoftwareED Studio Nova/Linsin
Communication TypeNet cable,3G,WIFI(Sold separately)Control Card InputDVI,USB,RJ45,HDMI(Sold separately)
LanguageChinese,Traditional Chinese,English,French,Japanese,Russian,
Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,
Romanian,Arabic

Product description:

What is a transparent LED display?

It is a new type of LED strip product innovation technology. The new production process of SMT, combined with the new design of high-transparency structural design, reduces the area of line of sight blocking and maximizes the effect of high transparency. Unique display effect, when the audience is standing at the correct distance, the image is displayed on a glass window. The application of transparent LED display has been extended to large glass buildings and commercial glass windows, and the market is large, becoming a new trend in the development of new media. This new high-transparency LED display technology has the advantages of 70-95% transparency and 1.0mm PCB thickness. The product can be easily installed behind glass windows, and the panel size can be customized without affecting the indoor lighting rate. Easy to install and maintain.

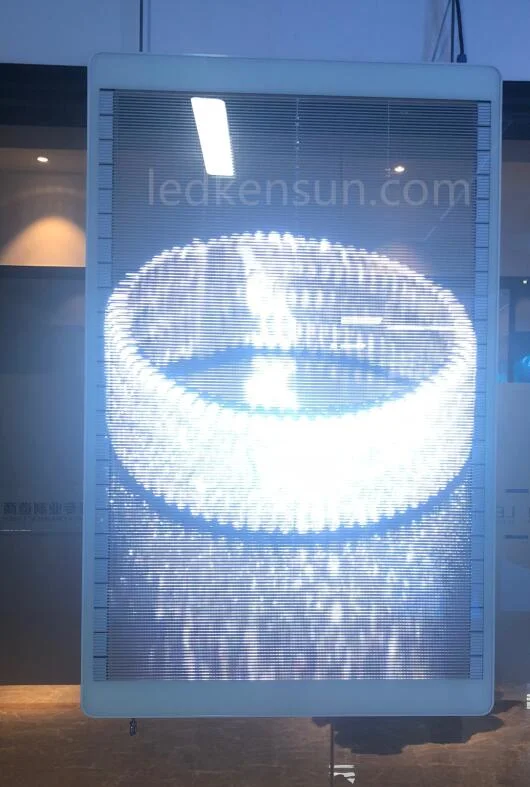

High Transparent Effect Indoor P3.91 Transparent LED Display Screen

Advantages:

(1). The high light transmittance is as high as 70-95%, which ensures the indoor illumination from the LED display and glass windows.

(2). Super small thickness and light weight. The panel thickness is less than 10 cm, and the weight is less than 15 kg per square meter, without changing the building structure. Can be fixed to glass windows or suspended from the ceiling.

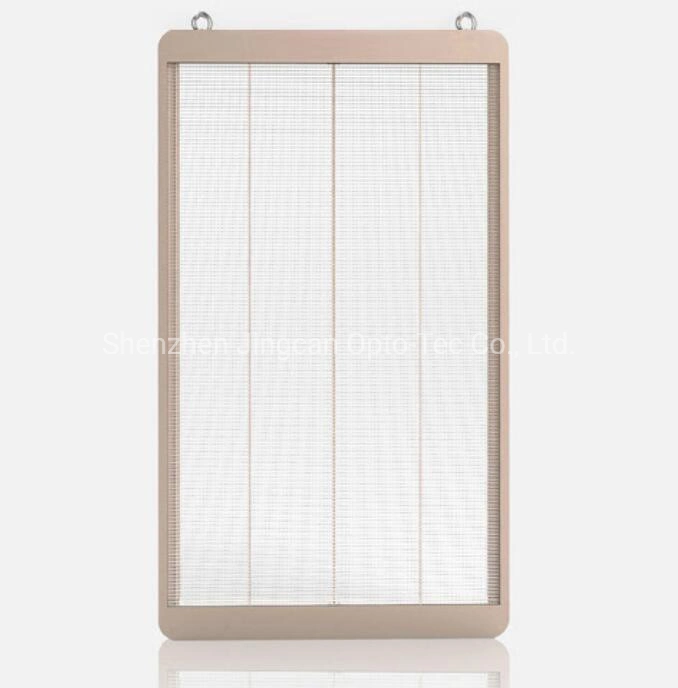

Cabinet:High Transparent Effect Indoor P3.91 Transparent LED Display Screen

High Transparent Effect Indoor P3.91 Transparent LED Display Screen

(3) No sub-steel structure is needed, saving a lot of installation and maintenance costs.

(4). Perfect advertising effect, full of artistic feeling, the video is like flying on glass.

(5). Compared with the screen installed outdoors, it is easy to maintain, fast and safe

(6) Power saving Compared with ordinary LED display screens, no additional cooling system is needed, and the power saving rate reaches more than 30%, which has a good environmental protection effect.

(7) High brightness, more than 3600 nm, can use day and night time.


Application:
High Transparent Effect Indoor P3.91 Transparent LED Display Screen
High Transparent Effect Indoor P3.91 Transparent LED Display Screen

Company information:

JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.

The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
High Transparent Effect Indoor P3.91 Transparent LED Display Screen

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
High Transparent Effect Indoor P3.91 Transparent LED Display Screen


Qualification Honor:
High Transparent Effect Indoor P3.91 Transparent LED Display Screen

Product Project:
High Transparent Effect Indoor P3.91 Transparent LED Display Screen

Packing and Shipping:

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.


High Transparent Effect Indoor P3.91 Transparent LED Display Screen
High Transparent Effect Indoor P3.91 Transparent LED Display Screen

FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.


Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs



Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
