Outdoor Large Led Screen Display P5 Outdoor SMD2727 Full Color 6000nits Rental Led Display
BOR-III is our most high cost performance outdoor rental product, curve-able, 500mmx500mm and 500mmx1000mm compatible, fully front accessible.
All electronics and components are using class A rank to match up all EU standards, while price is designed for high cost effective for those resellers and end users who need money back fast.
1. Lightweight cabinet with only 12kg/pcs.
2. 500x500mm, 500x1000mm Die-casting aluminum/brushed aluminum frame case fit for your needs.
3 Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.
4. With NEW led lamp SMD3535, and 250x250mm led module, super thin design,P5.95 could be used for all kinds of condition and installation.
5. High-precision die casting aluminum material cabinet, special design on cabinet bottom ensures flatness of whole screen even the platform is not flat. Also can protect modules in screen bottom. Front and back maintenance design by module magnet assembly.
6.Slim cabinet, only 20 tickness
7. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
|Pixel Configuration||SMD 2727|
|Pixel Density||28,224 pixels/ m²|
|NO. of Modules Per Panel (W*H)||2*2/2*4|
|Panel Material||Die-Casting Aluminum|
|Physical Resolution of Module(W*H)(mm)||42/42|
|Physical Resolution of Panel(W*H)(mm)||84*84/ 84*168|
|Single Cabinet Weight||9/15 kg/ panel|
|Average Power Consumption||75/ 150W / panel|
|Max Power Consumption||225/ 550w / panel|
|Viewing Angle||H: 160°/ V:140°|
|Operating Temp/ Humidity||-20ºC-60ºC / 10%-60%|
|Storage Temp/ Humidity||-30ºC-60ºC / 10%-60%|
|Expected Lifetime||100,000 Hrs|
|Servicing||Front / Rear|
|IP Rating(Front/Rear)||IP65 / IP 54|
|Max Stacking and Hanging||20/10|
|Refresh Rate||>1920 HZ|
The control system and the relate accessories before installation
1. Quick installation & maintenance
2. Stronger and more accurate cabinet frame
3. High definition and resolution
4. Can be curved screen and flat screen
5. Ultra slim and light weight
IP65 Waterproof, adjust the different kins of weather.
Widely Viewing Angle.
Horizontal / Vertial : 160° / 140° , Give you great HD visual enjoyment

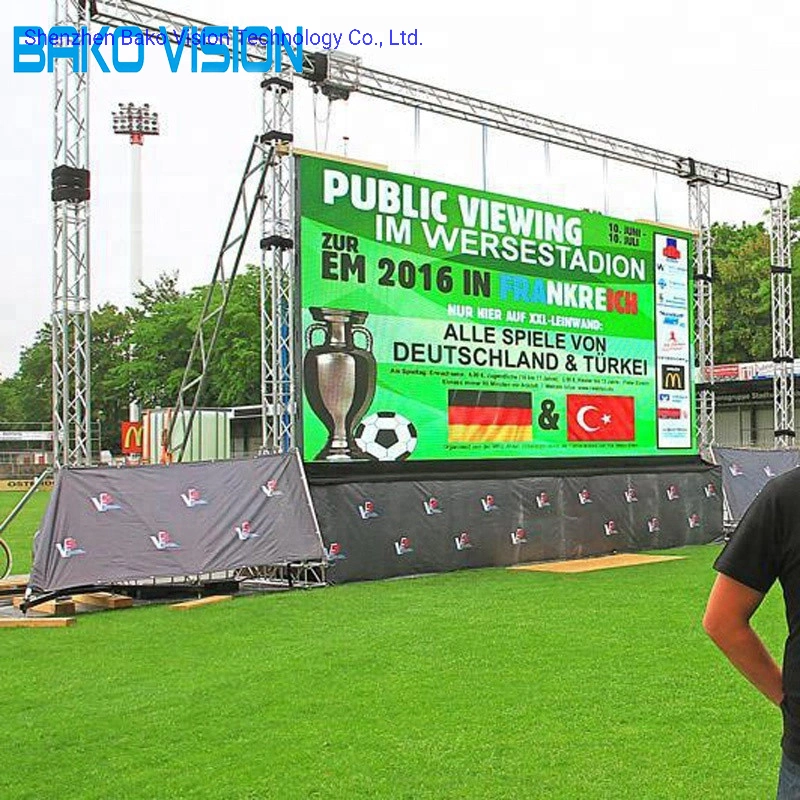

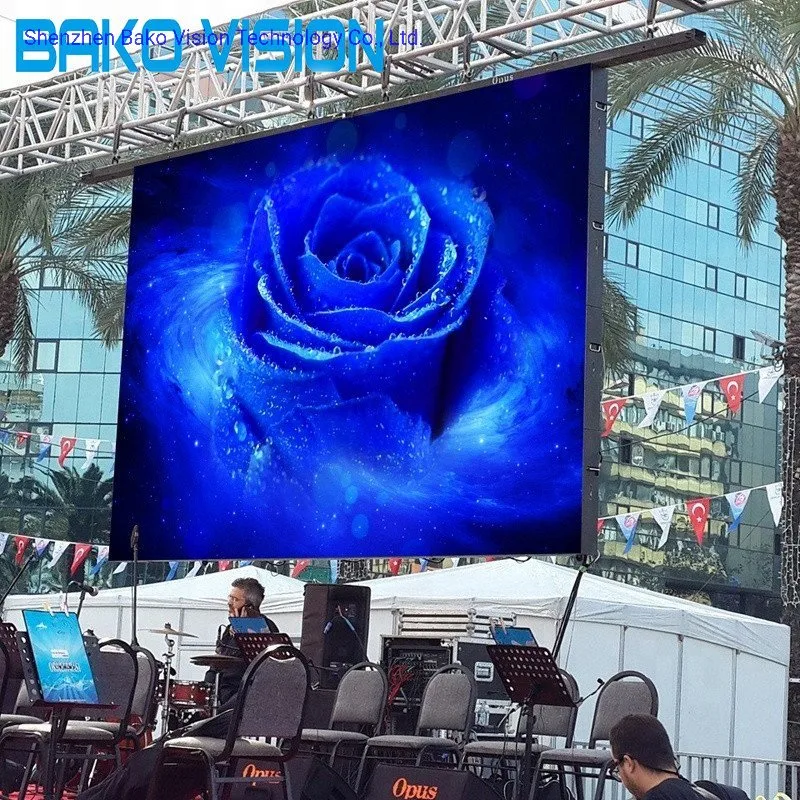

Widely used in Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
1. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
3. What is a custom LED display?
Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.
A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.
Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.
4. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
