P2.97mm full color indoor LED display screen HD rental stage LED screen

High Definition Indoor LED Display Rental Panel for EventsFeatures and Advantages1. Slim and lightweight. Made with die-casting aluminum, only 7kg per cabinet, 80mm thickness, saving the transportation cost effectively.2. Made with die-casting aluminum better for heat dissipation and no fan design very quiet.3. Fast install

Featured Products


High Definition Indoor LED Display Rental Panel for Events

Features and Advantages


1. Slim and lightweight. Made with die-casting aluminum, only 7kg per cabinet, 80mm thickness, saving the transportation cost effectively.

2. Made with die-casting aluminum better for heat dissipation and no fan design very quiet.

3. Fast installation and easy maintenance. Fast lock design guarantees a quick installation without tools. Magnetic modules guarantees a easy maintenance, saving the handling, labour cost effectively.

4. Wide viewing angle. 160° for horizontal, 140° for vertical. High contrast ratio and high refresh rate bring you a visual feast and well return.

5. Special concave and convex design, totally satisfy your requirements.
P2.97mm Full Color Indoor LED Screen Display High Definition Rental Stage LED Screen

Specification

 BIR-II-2XBIR-II-2BIR-II-3BIR-II-4
Physical Pitch(mm)2.6mm2.97mm3.91mm4.81
Pixel ConfigurationSMD2121SMD2121SMD2121SMD2121
Pixel Density147,456 pixels/sqm112,896 pixels/sqm65.536 pixels/sqm43.264 pixels/sqm
Module Dimensions (W × H) (mm)250x250250x250250x250250x250
Panel Dimensions (mm)500x500x80/500x1000x80500x500x80/500x1000x80500x500x80/500x1000x80500x500x80/500x1000x80
No. of Modules Per Panel (W × H)2x2/2x42x2/2x42x2/2x42x2/2x4
Physical Resolution of Module (W x H)96x9684x8464x6452x52
Physical Resolution of Panel (W x H) 192x192/192x384168x168/168x336128x128/128x256104x104/104x208
Panel MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Single Cabinet Weight8/14 kg / panel8/14 kg / panel8/14 kg / panel8/14 kg / panel
Gray Scale16 bit16 bit16 bit16 bit
Colours281 trillion281 trillion281 trillion281 trillion
Contrast Ratio4,000:14,000:14,000:14,000:1
Average Power Consumption400 W / sqm400 W / sqm325 W / sqm310 W / sqm
Max Power    Consumption800 W / sqm800 W / sqm780 W / sqm750 W / sqm
Operating Temp/Humidity-10°-60ºC/10%-60%-10°-60ºC/10%-60%-10°-60ºC/10%-60%-10°-60ºC/10%-60%
Storage Temp/Humidity-30°-60ºC/10%-60%-30°-60ºC/10%-60%-30°-60ºC/10%-60%-30°-60ºC/10%-60%
Refresh Rate>1,920 Hz>1,920 Hz>1,920 Hz>1,920 Hz
Brightness≥1,200nits≥1,200nits≥1,200nits≥1,200nits
Horizontal Viewing Angle160°160°160°160°
Vertical Viewing Angle140°140°140°140°
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
Max Stacking20/1020/1020/1020/10
Max Hanging20/1020/1020/1020/10
ServicingFront / RearFront / RearFront / RearFront / Rear
IP Rating(Front/Rear)IP40/IP21IP40/IP21IP40/IP21IP40/IP21
Scan Method1/32 Scan1/28 Scan1/16 Scan1/13 Scan

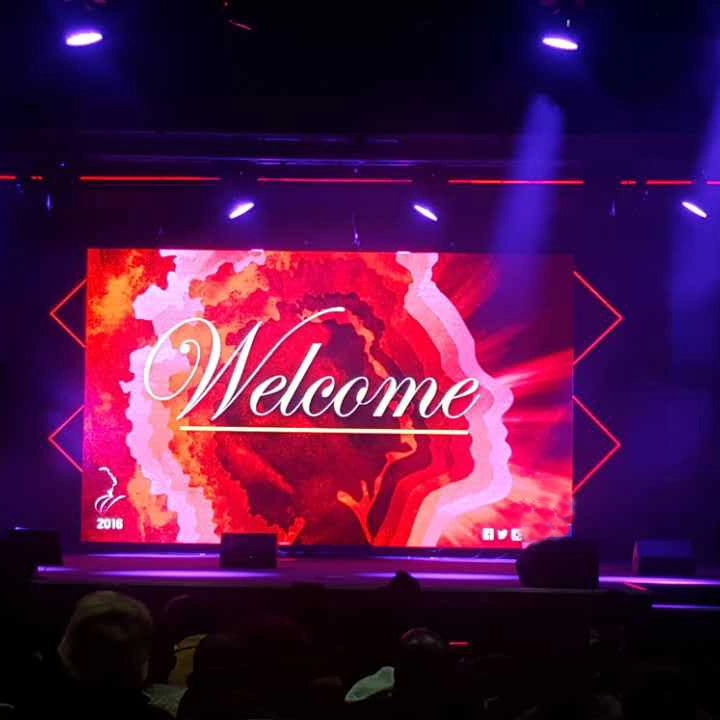

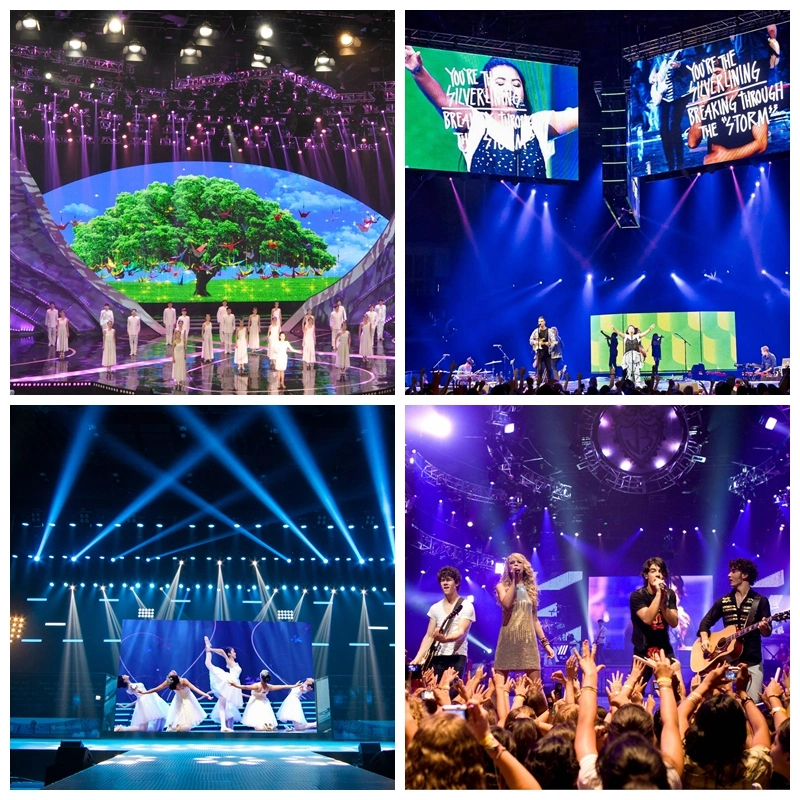

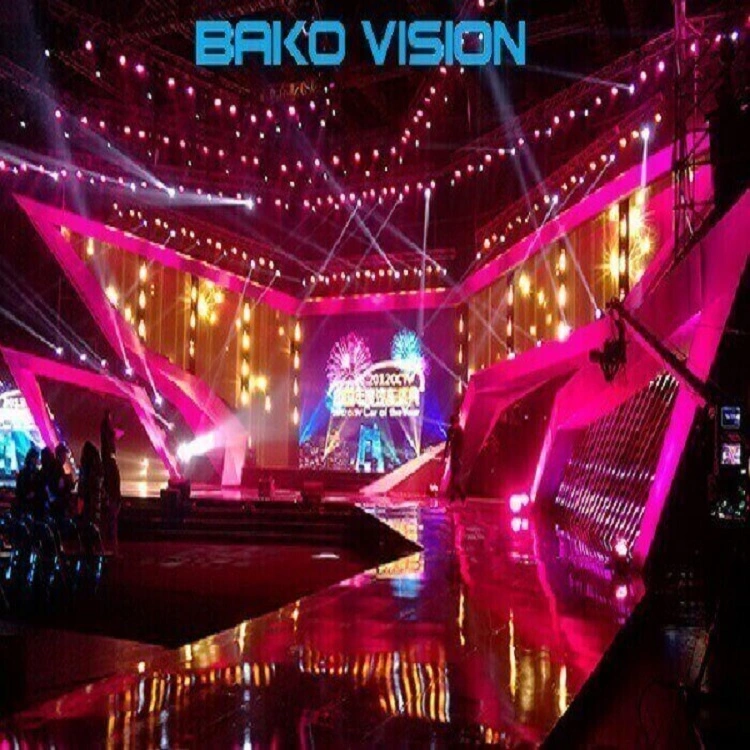

Case


P2.97mm Full Color Indoor LED Screen Display High Definition Rental Stage LED Screen


About us

Shenzhen BAKO VISION Technology Co., Ltd
, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

P2.97mm Full Color Indoor LED Screen Display High Definition Rental Stage LED Screen



 BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.


P2.97mm Full Color Indoor LED Screen Display High Definition Rental Stage LED Screen

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.



P2.97mm Full Color Indoor LED Screen Display High Definition Rental Stage LED Screen





Why choose us?


1. Well-experienced: Bako Vision started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens. And every sales team leader has been working in LED display industry over 14 years.

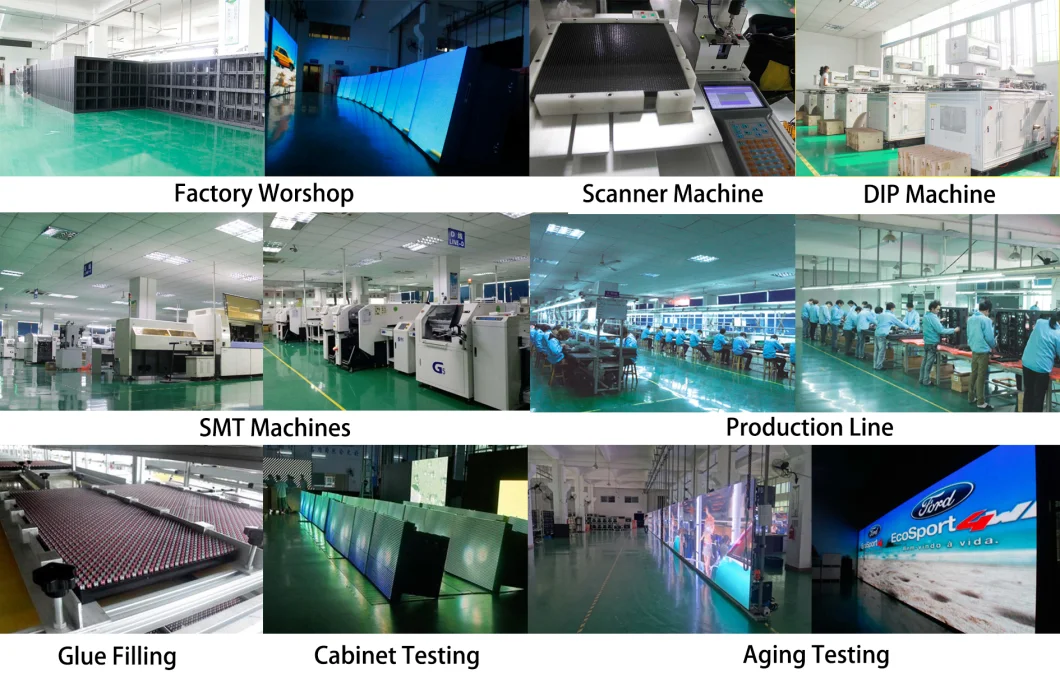

2. Quality Assurance: Equipped with multiple SMT lines and DIP lines and high-speed machines, imported from Panasonic and Samsung. Our quality management is complying with 7S and ISO9001-2000/ISO14001 product certification systems. At the same time, our products have obtained CCC, CE, ETL, RoHS, FCC, UL.

3. Capacity status: The company's monthly production capacity has reached 800 KK, take P3.91 as an example, it can produce 15,000 square meters per month.

4.  After-sales support: The company has set up an after-sales service department. There are many professional technicians engaged in the engineering installation, on-site debugging and training guidance of LED display products. We participate in foreign exhibitions many times every year and we can visit you.


P2.97mm Full Color Indoor LED Screen Display High Definition Rental Stage LED Screen


Q&A

Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.

Q2: Could we print our own logo on led display products?
 A: Of course. Please let us know all the details soon before production.

Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.

Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.


A To Z Process

PRE-PRODUCING:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design

IN PRODUCING:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

AFTER SERVICE:
1. 2 years warrenty
2. 7 days a week, 24 hours a day for on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
